GSE AC-EC, intake and exhaust fan controller

SKU: 12312

1.031,00 lei

No longer available

This product is no longer available

This page remains available for product information and reference.

Contact us

Description

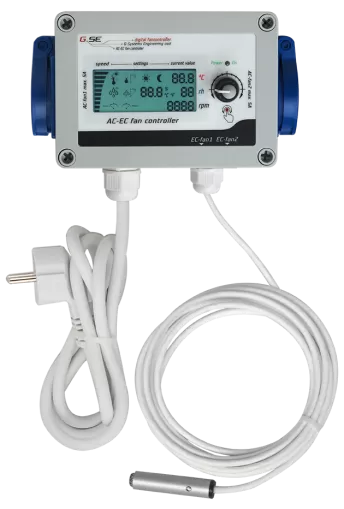

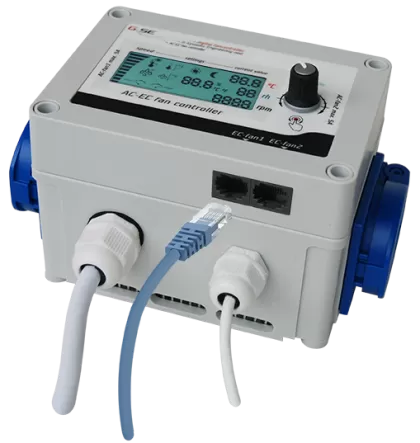

This LCD fan controller with built-in display and rotary knob makes it quick and easy to set and read all the information provided by the controller for the intake and exhaust fans. It displays the temperature, humidity and RPM speed of the EC exhaust fan. A built-in light sensor detects day/night modes. Two 5A / 230V AC outputs for the intake and exhaust fans, plus two RJ45 EC outputs, with a choice of 0-10V or PWM (pulse-width modulation) signal.

Settings range:

  • Temperature: 15 - 35C°, Hysteresis 1 to 5C°
  • Humidity: 0 - 100%, Hysteresis 1 to 20%
  • Minimum speed: off, 1 to 100%
  • Maximum speed: 10 to 100%
  • Negative pressure: 0 to 50%

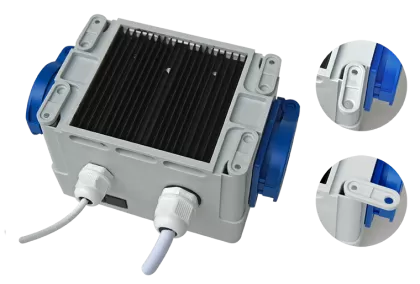

Two internal temperature sensors prevent the heatsink and processor components from overheating. However, if overheating occurs, variable control is switched off and a safety relay protects the exhaust fan while the intake fan is switched off. This way, the controller prevents complete ventilation failure and protects your plants.

The controller is ready to use. This reliable fan controller comes with a sealed, waterproof cover, covered sockets and a low-voltage sensor, making it ideal for humid environments. The sensor comes with a 4-meter cable. The controller is supplied with a 1.5-meter power cable and a 4-meter sensor cable, which can be extended to 10 meters if necessary.

Video instructions in English and Bulgarian: here* and here*

  • Temperature during the day
  • Temperature hysteresis during the day
  • Humidity during the day
  • Humidity hysteresis during the day
  • Minimum speed during the day
  • Maximum speed during the day
  • Temperature at night
  • Temperature hysteresis at night
  • Humidity at night
  • Humidity hysteresis at night
  • Minimum speed at night
  • Maximum speed at night
  • Negative pressure setting
  • Sensor switching
  • Day/night mode switching

LCD display:

  • Graphical and digital display of constant speed in rpm
  • Constant temperature display
  • Constant humidity display
  • Option to set the desired conditions

Dimensions and technical specifications:

  • Housing W x H x D: 130 x 92 x 105mm
  • Controller W x H x D: 160 x 130 x 105mm
  • Designed for: 10A / 2 x 1150W / Triac 2 x 16A
  • Voltage: 230V / 50HZ
  • Digital 5V sensor measures temperatures from –55°C to +125°C (–67°F to +257°F)
  • Temperature accuracy from –10 to +85°C: 0.5°C
  • Humidity accuracy +/-3%RH, max. tolerance 55%RH
  • Protection rating: IP54

Choosing a climate controller

Consider the load type and control method. An AC fan with adjustable voltage and an EC fan with a control input require different control methods. Follow the limitations of the specific model.
