EBB & FLOW - Irrigation Trays — Pots and Growing Media > Pots and Saucers > Trays

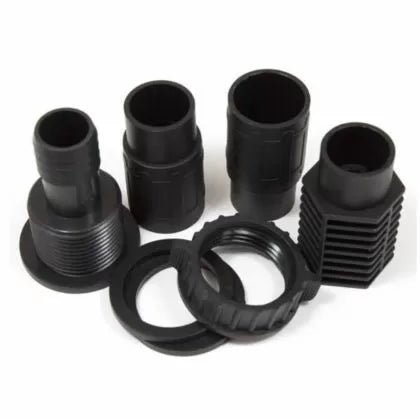

The Flux-Reflux drain is a key component for hydroponic systems, ensuring a constant supply of nutrients and water to plant roots for optimal growth. Easy to install and maintain, this drain is ideal for plants that require a regular supply of moisture and nutrients.

Key features:

• Designed for hydroponic systems
• Provides efficient irrigation and drainage
• Easy installation and maintenance
• Ideal for plants with a constant need for water and nutrients

Technical specifications:

• Dimensions: 10 cm x 10 cm x 10 cm
• Material: durable plastic
• Weight: 0.5 kg

Optimal irrigation with a Flood-and-Drain system

A Flood-and-Drain system is a vital component of any hydroponic system. Its primary function is to provide a constant supply of nutrients and water to plant roots, ensuring their growth and optimal development. This system is highly effective for irrigation and drainage, especially for plants that require a continuous supply of moisture and nutrients.

How does the Flood-and-Drain system work?

The drainage system works with a water pump that moves water and nutrients from a reservoir to the container holding the plant roots. When the container is full, the water drains back into the reservoir. This process is repeated several times a day, providing plants with the necessary amount of water and nutrients.

Recommended products to combine: A Flood-and-Drain system is a key element in hydroponic systems, and we recommend using it together with other products such as grow tables, lighting systems, and plant nutrients. Some recommended products are:

• Grow table 1.02 x 1.06 m
• Grow table 1.06 x 2.02 m
• LED grow lighting
• Nutrients for hydroponic plants

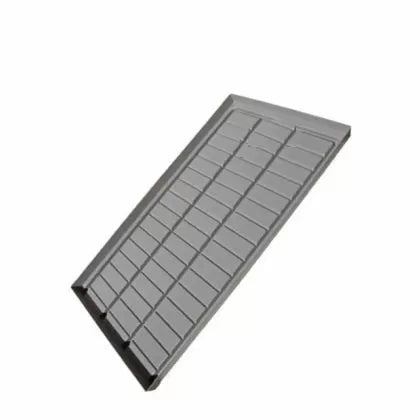

🔹 Ebb and Flow Tray measuring 1100 x 630 mm is specially designed for drip irrigation in greenhouses and hydroponic systems. This tray ensures even distribution of water and nutrients while allowing excess moisture to drain easily. The absence of a drainage hole makes it suitable for integration into systems with external drainage.

🔹 Detailed specifications:

• Dimensions: 1100 x 630 mm
• Material: Resistant to UV rays and chemicals, suitable for long-term use in agricultural conditions
• Design: Flat surface without a drainage hole, allowing integration into customized systems
• Application: Suitable for drip irrigation, hydroponic and NFT systems, greenhouses, and commercial nurseries
• Manufacturer: Stål & Plast A/S, Denmark

🔹 Recommendations and instructions for use:

1. Place the tray on a stable and level surface.
2. Install drip emitters or distributors at spacing suited to the plants' needs.
3. Connect the system to the main water source, ensuring flow rate and pressure control.
4. Regularly check the water level and the condition of the plants to ensure optimal growing conditions.

✅ Benefits of use:

• Even irrigation: Ensures even distribution of water and nutrients.
• Flexibility: Suitable for integration into customized systems with external drainage.
• Durability: Made from high-quality materials resistant to UV rays and chemicals.
• Easy maintenance: Flat surface without openings, making cleaning and maintenance easier.

The conical rubber plug has a diameter of 26/32 mm and works as a stopper (like a cork). It is mainly used in commercial vessel systems (such as Ebb & Flow trays) to prevent leakage until the tray is flushed through the drain hole.

Detailed features

• Type: conical rubber plug, working like cork stoppers.
• Size: 26/32 mm (in the context of Ø 28–32 mm) — corresponds to the stated range.
• Application: Closes trays during flooding; after installation, when the plug is removed, it allows filling with fresh water and flushing soil and residues through the drain hole.

Recommendations for use

• When installed, the plug seals the tray completely, allowing flooding without leakage.
• After removing the plug, the system automatically allows waste to drain. This makes cleaning and preparing the tray again easier.

Benefits

The rubber plug is a practical and inexpensive solution for controlled filling and draining of trays. It is easy to fit and provides a reliable seal during filling; removing it allows efficient rinsing and cleaning without additional mechanisms. This gives maximum control over the irrigation cycle.

A durable and practical metal table measuring 200×100 cm — suitable for trays, a workshop, garden, greenhouse or a versatile work area.

• Dimensions: 200 cm long × 100 cm wide.
• Construction: metal — a sturdy frame and legs, suitable for loads and varied conditions (indoors, outdoors and workshops).
• Type: modular/folding (or easy to assemble) — allowing convenient transport and storage. This is a typical advantage of folding metal tables.
• Application: versatile — for trays/processing, work, storage, the garden, greenhouse, home workshop or a temporary workspace.

• Use the table as a work surface for transplanting, preparing soil, watering and sorting crops — especially convenient for greenhouse work.
• For heavy-duty work or loads — make sure the frame is strong and stable; metal construction generally offers high resistance compared with wooden or plastic alternatives.

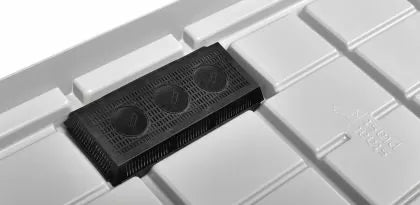

The drainage cone for grow trays is a filtering accessory designed to trap dirt and substrate residue as water drains away. It prevents these particles from entering the tray drain.

It is made of durable black plastic and is used as part of the drainage system for plant-growing trays.

HS Valve is a single-channel valve that uses the same channel for both filling and tray drainage. It is supplied as standard with a 3.5 mm internal opening, but the diameter can be modified on request. The valve offers 6 – 31 l/min filling, depending on the diameter and pressure, and 1.7 – 6 l/min drainage. Suitable for installation below filters, it is resistant to contamination and aggressive environments.

Detailed features

• Operating function: single-channel – one line serves both filling and drainage.
• Opening diameter: standard 3.5 mm, other sizes on request.
• Filling flow rate: from 2.3 to 31 l/min, depending on the opening diameter and water pressure.
• Drainage flow rate: from 1.7 to 6.0 l/min, depending on the opening diameter.
• Hose-connection options:
  • ¾″ hose
  • ½″ hose
  • PE hose 8×10.5 mm and 10×12.5 mm
  • PE hose 6×8 mm ([turn0view0])
• Manual bottom valve: allows filling to a specific tray to be stopped.
• Installation option: installed below the filters to prevent clogging from leaves and contaminants.
• Construction and maintenance: durable design, resistant to demanding growing conditions, with a removable internal cone for easy cleaning.

Recommendations for use

• Choose a suitable orifice diameter (3,5 mm or another size on request), matched to the water pressure for the desired filling and drainage flow rate.
• Install the valve beneath the tray filter to ensure protection from contaminants and trouble-free operation.
• Use the manual bottom valve when you want to stop filling a particular tray.
• Cleaning is easy — simply disassemble the removable cone and remove the accumulated particles.

Benefits

• Unified filling and drainage line — fewer components and easier installation.
• Wide flow range — from 2,3 to 31 l/min for filling and from 1,7 to 6,0 l/min for drainage, depending on the conditions.
• Flexible connection options for various hoses (½", ¾", PE).
• Easy installation below filters and excellent resistance to contamination.
• Robust construction and easy servicing ensure a long service life.

Quick Valve is the fastest and most commonly used valve for EBB & Flow trays. It is dual-channel: one channel fills the tray and the other drains it. When the water supply stops, the valve automatically drains at ~28 l/min. It comes standard with an internal opening of 4 mm (other diameters available on request). Installation beneath filters is recommended to protect against leaves, soil and debris.

Detailed features

• Function: dual-channel (fill + drain); the drainage channel oxygenates the irrigation water during filling for better root development.
• Filling flow rate: ~9–40 l/min depending on pressure and the internal diameter of the opening; standard 4 mm, other diameters on request.
• Automatic drainage: ~28 l/min when water supply stops.
• Manual bottom valve: yes — lets you avoid filling a specific table/tray.
• Connections (options):
  • ¾″ hose
  • ½″ hose
  • PE 8×10.5 mm and 10×12.5 mm
  • PE 6×8 mm
• Installation: countertop hole Ø 27 mm for recessed fitting; can be installed beneath sump plastic filters.
• Durability: designed for years of use in a demanding production environment.

Recommendations for use

• Select the internal opening (mm) according to the available pressure to achieve the desired filling flow rate.
• Install the valve under a filter (sump) to prevent blockage by debris.
• When you need to shut off a particular table, use the manual bottom valve.

Summary – Benefits

• Fast filling with an adjustable flow rate based on opening size and pressure.
• Automatic drainage of ~28 l/min when water supply stops.
• Improves irrigation water quality through oxygenation during filling.
• Flexible options for ½″, ¾″ and PE connections.
• Durable construction for a long service life in greenhouse conditions.

Siphon Valve is a simple yet effective drainage valve with a siphon. It allows a tray to drain automatically to a selected level by adjusting the lift tube (“riser”). Suitable for automated mobile systems, it can provide continuous drainage if the riser is fully removed.

Detailed features

• Level adjustment: Three preset water retention and drainage levels, set by moving the riser tube.
• Continuous drainage: If the riser is fully removed, the valve drains the tray completely.
• Full tray: With the riser in its highest position, water is retained in the tray.
• Drainage: Depending on the hole diameter — standard without a reduction ring: 17.5 mm internal diameter provides a maximum drainage rate of 9 l/min. Other sizes are available on request.
• Rubber gasket: Includes a standard 10 mm rubber gasket, compatible with standard sump filters. An optional 5 mm gasket is also available. The gasket height affects the operating water level in combination with the riser settings.
• Installation: It is possible to use 1 to 3 Siphon Valves in already constructed sump filters. The filters allow easy removal of the lid and installation of the valve.
• Construction: Very robust and resistant to demanding growing conditions. Easy to disassemble for regular cleaning.

Recommendations for use

• Adjust the riser pipe to the desired filling and drainage threshold (3 levels or continuous drainage).
• Use the standard 10 mm rubber gasket for optimum performance with standard sump filters. If you require a different retention level, look for the version with a 5 mm gasket.
• Install 1–3 valves according to your needs and the available space in the filters — they are easy to fit and remove.
• Regular cleaning is simplified thanks to the robust, detachable design.

Benefits

The Siphon Valve provides reliable, automatic draining of trays to a preset level through a siphon effect. The standard 10 mm rubber gasket ensures easy integration with sump filters, while the design is durable and easy to maintain. The option to use up to three valves in one system provides flexibility and control.

Repair Piece for Sump is a solution for repairing damaged sump tray wells. It is made in dimensions of 175 × 55 mm and allows easy replacement of defective sections—without the need to replace the entire tray.

Detailed features

• Dimensions: 175 × 55 mm — suitable for restoring damaged areas in sump trays.
• Installation: Clean and dry the surface of the damaged section. Apply the branded Staal & Plast adhesive, position the Repair Piece and, if necessary, seal the edges to ensure a strong and waterproof bond.
• Additional work: After fixing, it may be necessary to drill new holes for valves if the original ones fall within the new area.

Recommendations for use

• Prepare the surfaces thoroughly—they must be clean and dry before bonding.
• Use the original Staal & Plast adhesive to ensure durable and resilient bonding.
• After installation, if necessary, seal the edges with sealant to prevent the ingress of dirt and moisture.
• If sump valves need to be installed, you can drill new holes in the repaired section.

Benefits

The repair piece for sump trays provides an economical and reliable repair for damaged sections, without the need to replace the entire tray. Its 175×55 mm size allows precise replacement. Natural bonding and sealing guarantee tightness and long-term functionality, including the option of fitting new valves.
