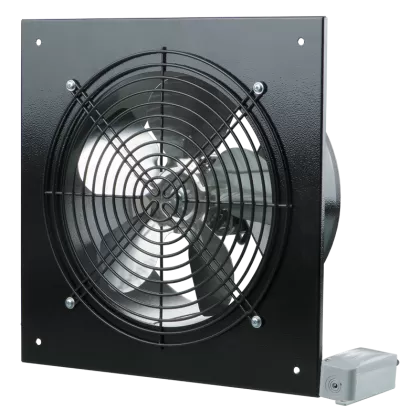

VENTS OV1 315 axial fan, 1700 m3/h, low-pressure, wall-mounted

Vents OV1-series axial fans are designed to move large air volumes at low pressure, with wall- or panel-mounting capability. They are used for ventilating commercial, office and other public or industrial spaces. The fan has an asynchronous single-phase motor with built-in thermal overheating protection and automatic restart.

• for wall or panel mounting
• with a steel housing and aluminium blades
• application: combined (extract and supply) ventilation system for various spaces requiring high airflow with relatively low system resistance
• diameter: ⌀ 312 mm
• max. airflow: 1700 m³/h

• Suitable for use in commercial, office and other public or industrial premises.
• Application: combined (extract and supply) ventilation system for various spaces requiring high airflow with relatively low system resistance.
• Motor: the single-phase asynchronous motor is equipped with thermal overheating protection with automatic restart. The motor is equipped with sleeve bearings. Degree of protection of the motor IP44.
• Speed control: step speed control via an external autotransformer (sold separately).
• Mounting: can be wall-mounted or recessed (in-line); (mounting brackets included).
• Power supply: the fan is powered through the remote terminal box. The power supply and installation must be carried out in accordance with the terminal-box manual and wiring diagram.

​Technical specifications:

• phases: 1
• voltage: 230 V
• Frequency: 50 Hz
• power: 110 W
• current: 0.75 A
• max. airflow: 1700 m³/h
• speed: 1300 rpm
• noise level at a distance of 3 m: 42 dBA
• min. temperature of processed air: - 30°C
• max. temperature of processed air: + 40°C
• degree of protection: resistant to dust and water splashes (IPX4, IP44)
• blade material: aluminium
• housing material: steel

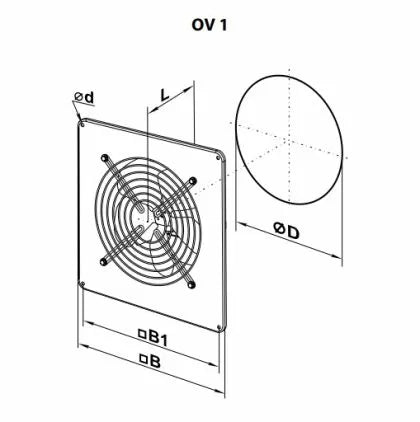

Fan dimensions (as shown in photo no. 3):

• diameter D: ⌀ 312 mm
• diameter d: ⌀ 9 mm
• B: 430 mm
• B1: 380 mm
• length L: 170 mm
• weight: 6.1 kg
