LUMii XLED LED Panel Light Controller (Timer) – EU Plug

🔹LUMii XLED Controller – EU Plug is a high-quality controller designed to control LED lighting with a 0-10V signal. It allows precise adjustment of the photoperiod and light intensity, as well as sunrise and sunset simulation, ensuring optimal conditions for plant growth.

🔹 Detailed specifications:

Manufacturer: LUMii

Model: XLED Controller – EU Plug

Signal type: 0 – 10 V

Number of channels: 1

Maximum number of connected devices: 25 LUMii XLEDv6 680W LED lights

Output voltage: 0 – 10 V ± 0.1 V

Adapter input voltage: 120 – 240 V AC

Controller input voltage: 12 V DC, 1.0 A

Operating temperature: 0°C – 35°C

Operating humidity: up to 80% RH, non-condensing

Protection rating: IP20

Installation: Wall-mounting or hanging option

Included accessories: EU plug adapter

🔹 Recommendations and instructions for use:

Connect the controller to the power source using the supplied adapter.

Use an RJ12 cable or connect directly to the push-in terminals to connect to the LED lights.

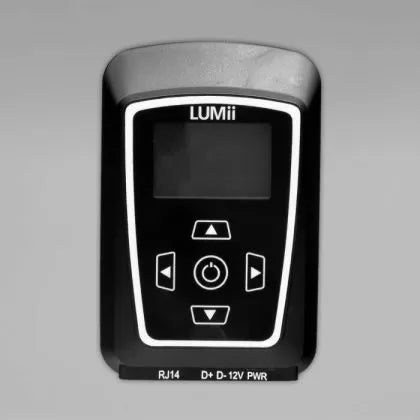

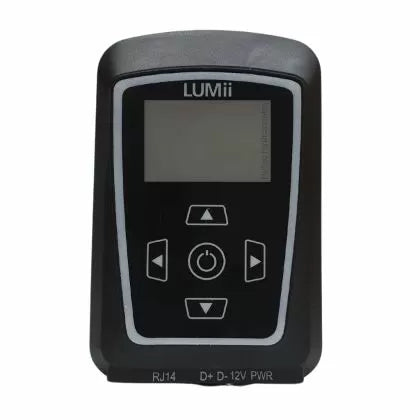

Set the desired photoperiod, light intensity, and sunrise and sunset simulation parameters via the 5-button interface.

The controller will control the connected devices, ensuring optimal conditions for plant growth.

✅ Benefits of use:

Precise control: Allows adjustment of the photoperiod and light intensity, as well as sunrise and sunset simulation.

Multiple devices: Can control up to 25 connected LED lights.

Ease of use: Intuitive 5-button interface for easy configuration.

Flexibility: Compatible with any LED lighting that accepts a 0-10V signal.
