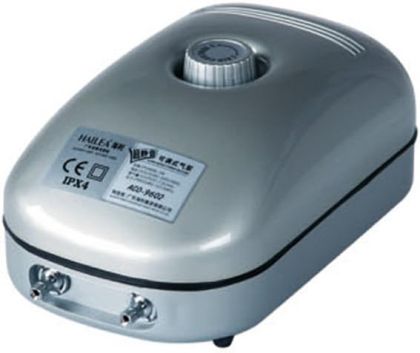

Hailea ACO-9602 Air Pump 7.2 L/min, 432 L/h

• Quiet, adjustable air pump Hailea ACO-9602 with a flow rate of up to 7,2 L/min (432 L/h) and 2 outlets — ideal for aerating reservoirs, aquariums and hydroponic systems.

Detailed features

• Model: ACO-9602 (Hailea ACO series).
• Maximum flow rate: 7,2 L/min (432 L/h).
• Power: 5 W.
• Noise level: < 40 dB.
• Head / pressure: > 0,012 MPa (≈ 1,2 m water column) .
• Power supply / voltage: 110/220 V, 50/60 Hz .
• Outlets: 2 outlets (each Ø 4 mm).
• Dimensions: approximately 162 × 100 × 87 mm.
• Weight: ~ 0,6 kg.

Construction and features:

• Adjustable airflow.
• Oil-free construction for clean air.
• Multi-stage silencer for lower noise.
• Vibration-absorbing rubber feet to minimize vibrations.
• Continuous operation and long service life.

Recommendations for use

• Place the pump on a stable, level surface with rubber feet.
• Connect each outlet with flexible Ø 4 mm tubing and suitable fittings.
• Adjust the flow as needed — if the full 7,2 L/min is not required, reduce it using the regulator.
• Keep the inlet filter / valve clean to prevent a drop in performance.
• Do not allow the pump to draw in dust or solid particles — place it in an environment with clean air.
• When installed above water level, provide protection to prevent water from being sucked back in when it stops.

Benefits

Hailea ACO-9602 offers a good balance of size, power and performance: a 7,2 L/min flow rate, adjustable flow, low noise level and dual outlets make the model suitable for many aeration systems — from aquariums to hydroponics.
